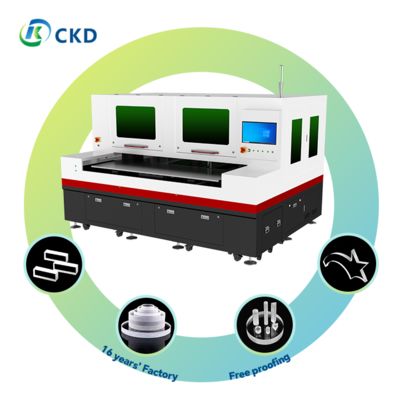

Customizable Laser Glass Cutting Machine for Various Glass Applications and Sizes To Accuracy±0.01mm

Product Description:

The Laser Glass Cutting Machine is a versatile and advanced piece of equipment designed for precision cutting of various types of glass. Whether you're working with stained glass, optical glass, or environmental protection glass, this machine offers exceptional performance and reliability.

One of the key features of this cutting-edge machine is its ultra-fast Pulse Width of less than 10ps. This enables quick and accurate cutting, ensuring high efficiency and excellent results every time. The splitting laser source Power is available in different options to suit your specific needs, with choices of 150W, 250W, or 350W.

With dimensions of either 2150mm × 2080mm × 1960mm or 2550mm × 2080mm × 1960mm, the Laser Glass Cutting Machine provides a spacious cutting area while maintaining a compact footprint. This makes it ideal for various workshop sizes and layouts, offering flexibility and convenience.

When it comes to cutting capabilities, this machine excels in producing precise cuts on different types of glass. The Cutting Thickness specifications include Ultra-clear Glass Single Cut up to 19mm and Blue Glass Double Cut up to 19mm. This versatility allows you to work with a wide range of glass materials with ease and accuracy.

Equipped with a Drive Motor that combines XY Linear Motor and Optical Grating Scale technology, this glass cutting machine ensures smooth and stable operation. The Linear Motor provides high-speed and precise movement, while the Optical Grating Scale enhances the accuracy and consistency of the cutting process.

Whether you're a professional glass artist, a manufacturer of glass products, or a hobbyist looking to explore new creative possibilities, the Laser Glass Cutting Machine is a valuable tool that offers exceptional performance and reliability. Its advanced features, precise cutting capabilities, and user-friendly design make it a must-have for anyone working with glass materials.

Experience the seamless precision and efficiency of the Laser Glass Cutting Machine and take your glass cutting projects to the next level. Invest in this cutting-edge equipment today and elevate your craft to new heights!

Features:

• Product Name: Laser Glass Cutting Machine
• Noise Level: Operating Noise Level Is 70dB, With A Built-in Silencing System, Suitable For Low-noise Environments.
• Safety Features: Includes Emergency Stop Button, Protective Cover, Laser Safety Windows, And Automatic Power-off When The Cover Is Open For Safe Operation.
• Laser Power: 30/50/60/75/80/90w
• Positioning Accuracy: ±2μm
• Cutting Speed: Adjustable From 0-500mm/s

Technical Parameters:

Applications:

CKD Laser Glass Cutting Machine is a versatile and high-quality product suitable for a wide range of applications in various industries. With models such as CKD-DP6070C-50E, CKD-DP6070S-80TE, and CKD-SP6070D-60E, this laser cutting machine is a top choice for businesses looking for precision cutting solutions.

The Product Application Occasions and Scenarios for the Environmental protection glass laser cutting machine include the Glassware Industry, where it can accurately cut Optical Glass, K9 Glass, and Ultra-thin Glass. In the Houseware Industry, it is perfect for cutting High-borosilicate Glass, Quartz Glass, and Sanitary Ware Glass. The Vehicle Industry can benefit from this machine for cutting Automotive Glass, Car Windshields, and more. For the New Energy sector, it is ideal for cutting Photovoltaic Glass. Additionally, in the Home Appliance industry, it is suitable for cutting Home Appliance Glass and Panel Lighting Glass. Real Estate businesses can use this machine for Architectural Decoration and Bathroom Glass cutting.

With a Cutting Area of 400mm*500mm to 600*900mm, this laser cutting machine offers precision cutting for various glass sizes. The Splitting laser source Cooling Method using Water Cooling ensures efficient and continuous operation. The Laser wavelength of 1064nm provides high cutting accuracy.

The machine supports a variety of image and text formats including AI, PLT, DXF, BMP, Dst, DWg, LAS, and DXP, making it convenient for users to work with different file types. The Certification of ISO CE guarantees quality and reliability.

CKD Laser Glass Cutting Machine has a Minimum Order Quantity of 1 with a Negotiated Price. The Packaging Details include Wooden vacuum packaging for secure transportation. Delivery Time ranges from 25-45 days, and Payment Terms accepted are L/C and T/T. With a Supply Ability of 60 sets per month, businesses can rely on timely delivery of this advanced laser cutting machine.

Customization:

Product Customization Services:

• Brand Name: CKD
• Model Number: CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, CKD-SP6070C-80E
• Place of Origin: China
• Certification: ISO CE
• Minimum Order Quantity: 1
• Price: Negotiated
• Packaging Details: Wooden vacuum packaging
• Delivery Time: 25-45 days
• Payment Terms: L/C, T/T
• Supply Ability: 60 sets per month
• Laser Type: Infrared Picosecond
• Applicable Industries: Glassware Industry - Optical Glass, K9 Glass, and Ultra-thin Glass; Houseware Industry - High-borosilicate Glass, Quartz Glass, Sanitary Ware Glass; Vehicle Industry - Automotive Glass, Car Windshield, etc; New Energy - Photovoltaic Glass; Home Appliance - Home Appliance Glass, Panel Lighting Glass; Real Estate - Architectural Decoration, Bathroom Glass, etc
• Minimum Cutting Burr: ≤5um
• Compatibility with Automation Systems: Supports integration with major automation systems, including robot interfaces and automatic loading/unloading systems. Standard industrial communication protocols (like Modbus, OPC) are supported.
• Linear guide brand: TPI

Keywords: Polygonal glass cutting machine, Small glass laser cutting machine, colored glass cutting machine

Support and Services:

Our Laser Glass Cutting Machine product comes with comprehensive technical support and services to ensure smooth operation and maximum efficiency. Our team of experts is available to assist with installation, setup, and troubleshooting any issues that may arise.

We offer training programs to help users fully utilize the capabilities of the machine and provide regular maintenance services to keep it running at peak performance.

Additionally, our support team is dedicated to answering any questions and addressing concerns to guarantee customer satisfaction and enhance the overall experience with our Laser Glass Cutting Machine.

Packing and Shipping:

Product Packaging and Shipping for Laser Glass Cutting Machine:

Our Laser Glass Cutting Machine is carefully packaged to ensure safe delivery to your location. Each machine is securely placed in a custom-made wooden crate to prevent any damage during transportation.

Shipping Information:

- We offer worldwide shipping with reliable carriers.

- Shipping time may vary depending on your location.

- Once your order is processed, you will receive a tracking number to monitor the shipment progress.

FAQ:

Q: What is the brand name of the Laser Glass Cutting Machine?

A: The brand name of the Laser Glass Cutting Machine is CKD.

Q: What are the available model numbers for the Laser Glass Cutting Machine?

A: The available model numbers for the Laser Glass Cutting Machine are CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, CKD-SP6070C-80E.

Q: Where is the Laser Glass Cutting Machine manufactured?

A: The Laser Glass Cutting Machine is manufactured in China.

Q: What certifications does the Laser Glass Cutting Machine have?

A: The Laser Glass Cutting Machine is certified with ISO and CE.

Q: What are the payment terms for purchasing the Laser Glass Cutting Machine?

A: The payment terms for purchasing the Laser Glass Cutting Machine are L/C and T/T.
